This product has been discontinued.

Home Page > Product > Large-LED-Display > AIO LED Display > FHDQ135S

FHDQ135S

135" LED All-in-One Display

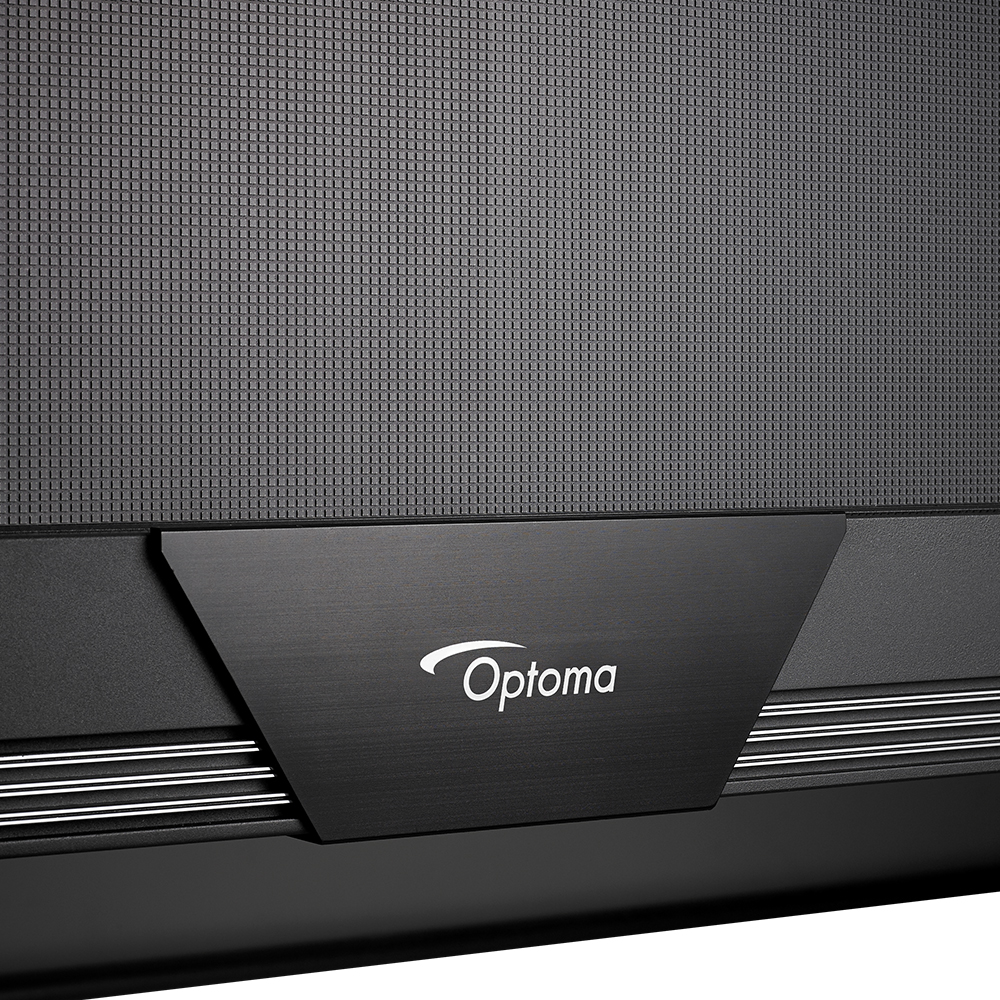

FHDQ135S 135" LED All-in-One Display
Elevate your collaborative experiences with Optoma’s FHDQ135S.
Dual OS and Wi-Fi* expand your capabilities, allowing seamless access to a broad array of apps and platforms. This powerful smart All-inOne display supports onboard processing for audio, and power, all through a single power cable. Say goodbye to cable clutter and hello to a simplified setup that enhances efficiency.

Smart and hazel-free all-in-One solution for better collaboration

The FHDQ135S with dual OS* and unique Optoma Solution Suite (OSS), are tailored for a superior interactive experience, enabling seamless integration of diverse apps and easy sharing from mobile devices to large displays.

Premium imagery and visual brilliance redefined

Experience unparalleled visuals: stunning 850 nits brightness, immersive 170゜viewing angle, 10000:1 high contrast ratio and vibrant colors compliance with DCI P3 and REC709, all enhanced by advanced color calibration and Optoma premium image processing technology for lifelike details.

Eco-friendly choice with next-gen flip chip technology

The FHDQ135S display sets a new standard in power efficiency. With next-gen flip chip LED bonding and supporting

Smart All-in-One design boost seamless collaboration

Elevate your collaborative experiences with Optoma’s FHDQ135S. Dual OS* and Wi-Fi* expand your capabilities, allowing seamless access to a broad array of apps and platforms.

Experience visual excellence in every pixel

High brightness that defies the elements

Designed to cut through high ambient light, the Optoma FHDQ135S brings your visuals to life with unparalleled 850 nits brightness.

Maximize Productivity with Advanced Content Management

Experience the flexibility of showcasing up to four independent input sources simultaneously, without compromising on clarity or quality.

Optoma Solution Suite (OSS) : Hassle-free Content Sharing and Collaboration

A hassle-free wireless collaboration solution designed for easy video conferencing, collaboration and presentation in the modern workplace.

Optoma Management Suite (OMS): Remote Monitor. Diagnose. Control.

Manage your displays in different locations from a centralized location within the local area network (LAN)

Device monitoring, alerts, and control

Broadcast important text messages on multiple Optoma devices

Receive device anomaly alerts through email

Specification

Physical parameters

Pixel Pitch

1.5625

Pixel Configuration

4in 1 Flip Chip

Screen resolution

1920x1080

Module Dimensions (W x H)

150x337.5mm (5.9x13.3 inch)

No. of Modules Per Screen (W x H)

25x4(Total 100 Pcs LED Modules)

Screen Dimensions (W x H x D)

3032x1793.5x36mm-with Screen Frame
3032x1793.5x85.3mm-with System Box

Weight (Per Cabinet/Per Screen)

4kg/190kg (8.82lbs/418.5 lbs)

Pixel Density

409,600 pixels/m2

Flatness of Cabinet

±0.15 mm

Cabinet Material

Die-cast Aluminum

Gray Level

12 bits (IC 16 bits)

Aspect Ratio

16:9

Service Access

Front: LED Module ; Rear: Controller

Electrical parameters

Power Supply Voltage

100-240V, 50/60Hz

Average Power Consumption (W/Screen)

≤ 750W

Max Power Consumption (W/Screen)

≤ 1700W(240V), 1500W (100V)

Refresh Rate

max. 3840

Operation Conditions

Operating Temp/Humidity

0 - 40 °C/ 10% - 80%RH (no frost)

Storage Temp/Humidity

-20 - 40 °C/ 10% - 65%RH (no frost)

IP Rating

IP50

Expected LED Lifetime (type)

100, 000Hrs

Speaker

Built-In

10Wx2

External

3.5-mm AUDIO external sound
system connector (prior to the
built-in sound system connector

System

OS

Android 9.0

WiFi Dongle

In accessories

Input

HDMI 2.0 (x3), DP 1.2, 3D-SDI,
Genlock, USB 2.0 & 3.0, LAN port,
OPS-Slot

Output

HDMI out, HDMI1 loop

Control

IR in, RJ45, RS232 in/out

Optoma App

Browser, Media player, Launcher OOBE,
OMSC, Display Share, File Manager,
Office Viewer, Marketplace,
Whiteboard - Creative Board, FOTA
App, Joan

Optical Parameter

Brightness

100 ~ 800 Nits Adjustable (240V)
100 ~ 700 Nits Adjustable (100V)

Contrast Ratio

10,000 : 1

Visual Viewing Angle (H x V)

170° x 170°

Brightness Uniformity

97%

Color Uniformity

± 0.003 Cx, Cy

Color Temperature - Default (Adjustable)

6500 K
(3200K/ 9,300K/ 12,000K)

Certification

CE, CB, FCC, cTUVus, VCCI

Environment

RoHS, REACH, WEEE
